GSI VLBI solution int02

February 2003

Geographical Survey Institute solution int02 used 1.5 hour sessions of dual band VLBI observations at 8.4GHz and 2.2 GHz from 1997.01.02 till 2003.02.18 carried out under IVS Intensive program. UT1 angles were determined for each session.

Earth orientation parameters

UT1 angle was estimated for each session separately.

EOP time series in Solve EOP format		Format description
EOP time series in EOB format		Format description
EOP time series in IVS format		Format description

Assessment of accuracy of EOP series

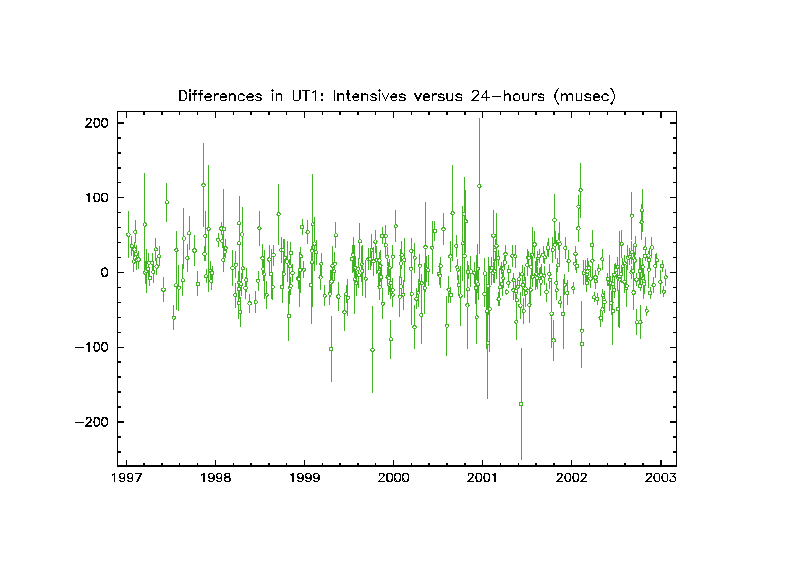

Comparison of UT1 angles determined in 377 IVS Intensive sessions which ran simulataneously with 24 hour VLBI sessions gives us a measure of accuracy of the UT1 estimates. Plot of the differences in UT1 angles determined in 1.5 hour IVS Intensive sessions with respect to 24 hour VLBI sessions.

Statistics of the differences in UT1 angles int02 minus gsi2002c

Number of points: 377
Average:   0.9 +- 7.6 musec
w.r.m.s: 25.82        musec
Chi/ndg= 3.94

Statistics

wrms for each session

Format description

Comparison of EOP series

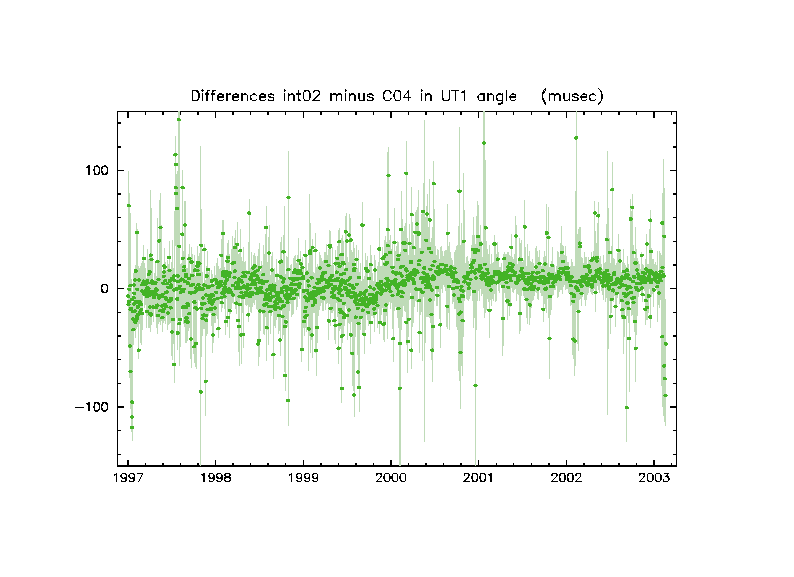

Plot of the differences in UT1 angles determined in 1.5 hour IVS Intensive sessions and the UT1 angles reported in the IERS C04 series shows random noise.

Statistics of the differences in UT1 angles int02 minus IERS c04

Number of points: 1462
Diff. UT1 angle   (musec)   shift:     3.66 -+ 0.221  rate:     2.99 -+ 0.416
      UT1 angle   (musec)   w.r.m.s. =    15.792      Chi/ndg=  2.06

Miscellaneous

Control file for batch Solve solution.

Description of Solve batch control language.
