GSI VLBI solution int01

Geographical Survey Institute solution int01 used 1.5 hour sessions of dual band VLBI observations at 8.4GHz and 2.2 GHz from 1997.01.02 till 2002.11.11 carried out under IVS Intensive program. UT1 angles were determined for each session.
Technical description progvides more details.

Earth orientation parameters

UT1 angle was estimated for each session separately.
EOP time series in Solve EOP format Format description
EOP time series in EOB format Format description
EOP time series in IVS format Format description

Assessment of accuracy of EOP series

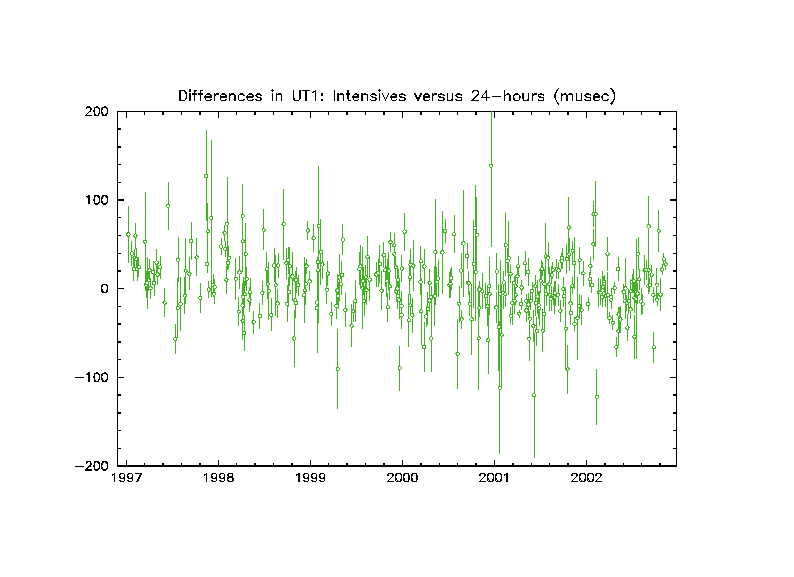

Comparison of UT1 angles determined in 347 IVS Intensive sessions which ran simulataneously with 24 hour VLBI sessions gives us a measure of accuracy of the UT1 estimates. Plot of the differences in UT1 angles determined in 1.5 hour IVS Intensive sessions with respect to 24 hour VLBI sessions.
Statistics of the differences in UT1 angles int01 minus gsi2002c

Number of points: 346
Average:  3.5 +- 7.6 musec
w.r.m.s: 26.0        musec
Chi/ndg= 4.00

Statistics

wrms for each session Format description

Comparison of EOP series

Plot of the differences in UT1 angles determined in 1.5 hour IVS Intensive sessions and the UT1 angles reported in the IERS C04 series shows random noise.
Statistics of the differences in UT1 angles int01 minus IERS c04

Number of points: 1424
Diff. UT1 angle   (musec)   shift:     2.43 -+ 0.232  rate:     3.97 -+ 0.428
      UT1 angle   (musec)   w.r.m.s. =    16.035      Chi/ndg=  2.12

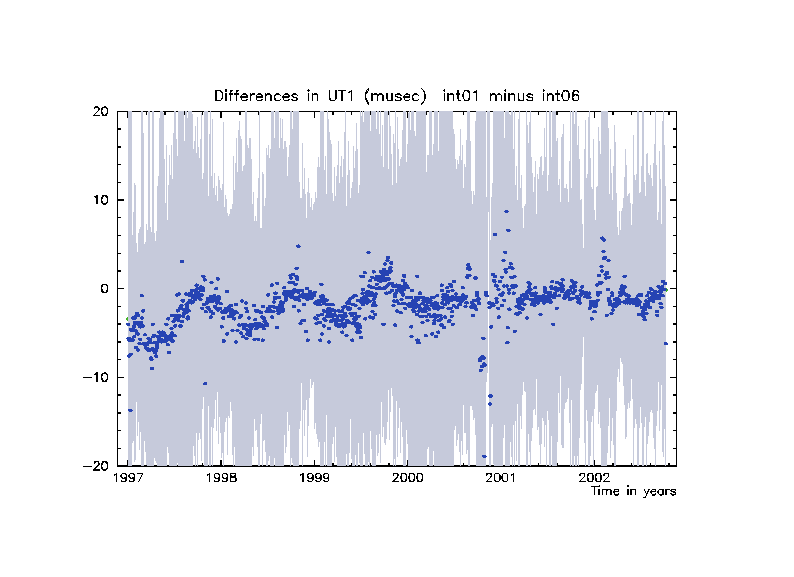

Plot of the differences in UT1 angles determined in 1.5 hour IVS Intensive sessions and the UT1 angles reported in the GSFC solution int06 series shows random noise.
Statistics of the differences in UT1 angles int01 minus GSFC int06

Number of points: 1268
Diff. UT1 angle   (musec)   shift:    -3.41 -+ 0.03   rate:     0.56 -+ 0.05
      UT1 angle   (musec)   w.r.m.s. =    1.86

Miscellaneous

Control file for batch Solve solution. Description of Solve batch control language.
